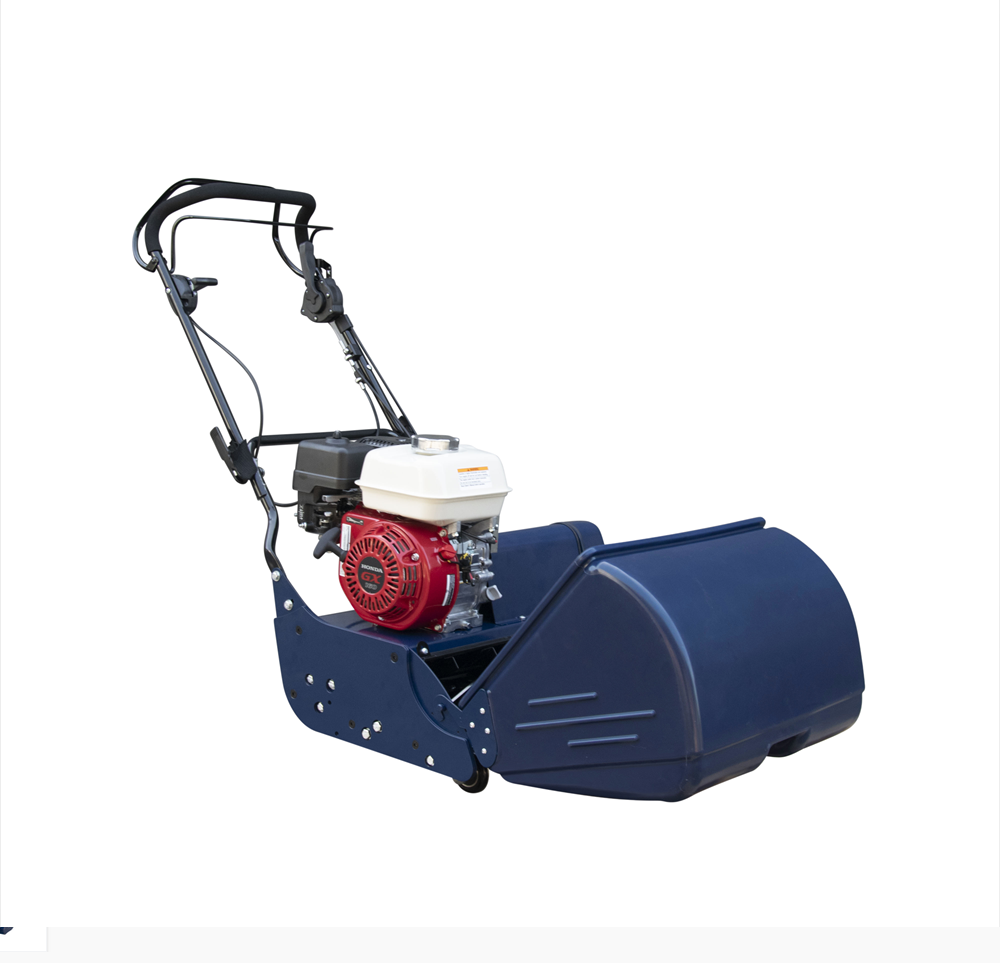

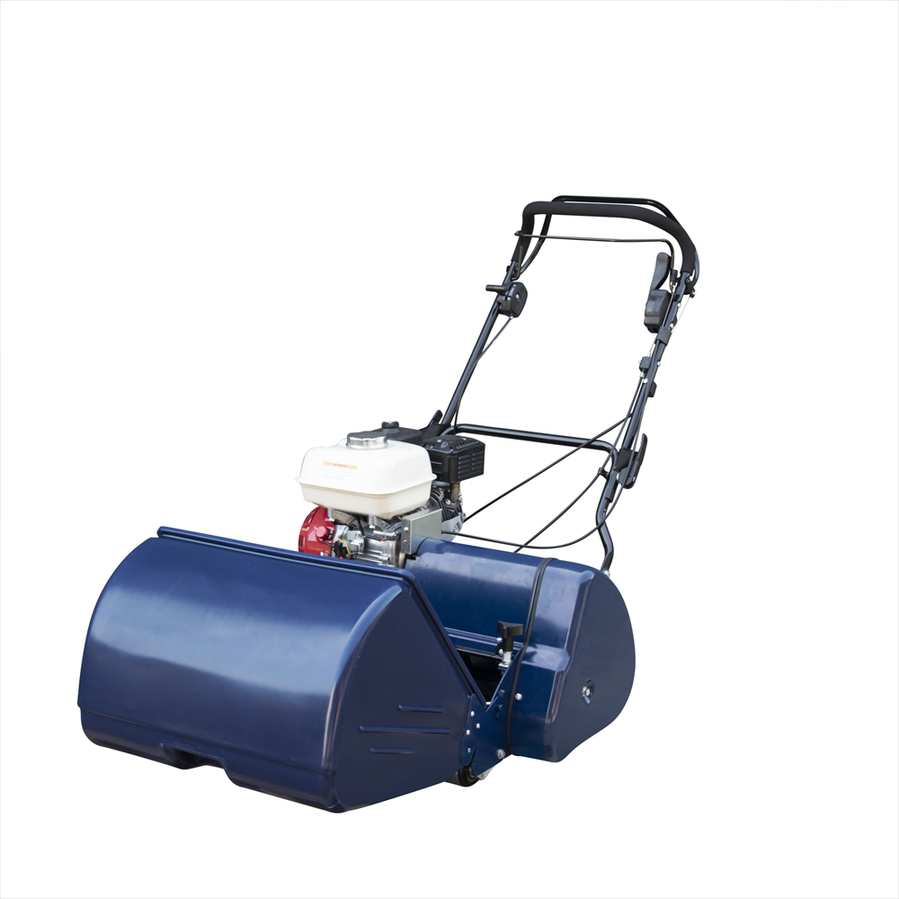

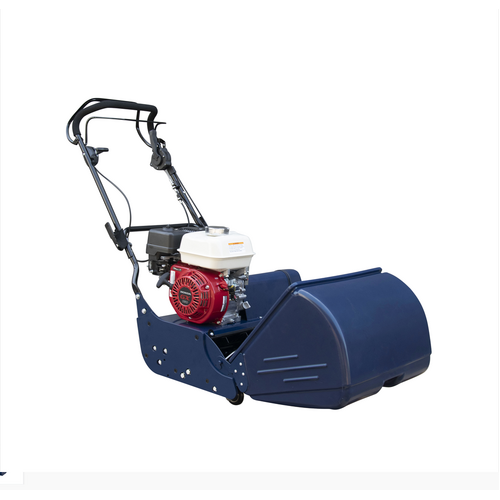

Commander DC510 Plus

Professional 20" Cylinder Mower

The Commander DC510 Plus features a dual clutch system, precision-balanced steel 6-blade cutting reel, and 205mm rubber-lined split steel rear roller for a smooth, refined cut.

Powered by a reliable Honda GX160 163cc engine, the DC510 Plus is designed for dependable performance, easy operation and low maintenance.

Features

• Honda GX160 163cc engine
• 5.5HP power rating
• 510mm (20") cutting width
• Dual clutch for independent ground speed and reel engagement
• Steel 6-blade cutting reel
• 7–30mm cutting height range
• 124 cuts per metre
• 70L UV-stabilised polypropylene catcher
• 205mm rubber-lined split steel rear roller
• Heavy-duty front roller
• Single-point cutting height adjustment
• 7mm lipped bottom blade
• Heavy-duty chain drive
• Cone clutch cylinder engagement
• Maintenance-free bearings
• Upturned soft-grip handlebar
• Camlock handlebar retainer
• Compact design
• 2-year warranty

Specifications

Engine: Honda GX160
Capacity: 163cc
Power: 5.5HP
Cutting Width: 510mm (20")
Cutting Height: 7–30mm
Cutting Method: Cut & Catch
Cutting System: 6-blade cylinder
Standard Cuts: 124 per metre
Rear Roller: Rubber-lined split steel
Drive: Chain drive
Catcher: 70L UV-stabilised polypropylene
Weight: 65kg

Commander DC510 Plus — precision cutting and reliable performance in a compact, easy-to-use package.
